ssd NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

  • Sonic
  • Sonic's Avatar
  • Offline
  • Newbie
  • Newbie
    Enregistré
  • Posts: 1
  • Thanks: 0

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

3 weeks 17 hours ago - 3 weeks 16 hours ago
#4792

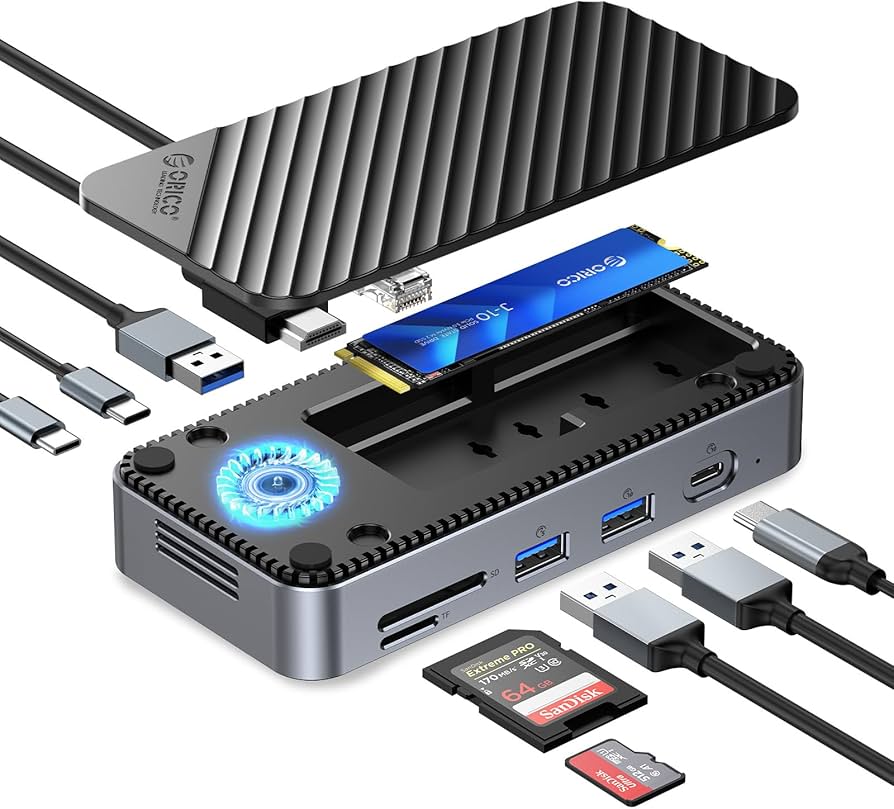

I have an ORICO-DPM2P9-V1 docking station. While updating the firmware, I forgot to back up the original configuration. Now the device gets very hot and the fan is constantly running at high speed. If anyone who owns this device could kindly provide the original configuration file, I would be extremely grateful.

Any help would be greatly appreciated!
Last edit: 3 weeks 16 hours ago by admin.

Please Connexion or Create an account to join the conversation.

  • admin
  • admin's Avatar Topic Author
  • Offline
  • Admin
  • Admin
    Administrateur
  • Posts: 352
  • Thanks: 133

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

3 weeks 16 hours ago
#4793
Hi, have you tried several Config Files (*.cfg) for the package(s) that integrate the firmware?
Furthermore, the box has several functions that need to be checked to see if everything is working as well.
Configuration
Gigabyte Z890 Master, Intel Cpu Core Ultra 7 265K, Memoires 32Go Corsair DDR5 (6000Mhz CL30), Water-cooling Thermaright, nVidia Geforce RTX4060,  Alimentation Gigabyte 850W, Samsung SSD 990 Pro, SSD9100 Pro, Clavier Razer Black Window , Souris Razer, Boitier NZXT H6, HP Steelserie, Free Fibre Ultra (8Go/8Go), Lan 10Gb, Cable CAT8/7, Switch 10/5/2.5Gbps, Casque Philips Fedelis.

Please Connexion or Create an account to join the conversation.

  • Laroldski
  • Laroldski's Avatar
  • Offline
  • Big Poster
  • Big Poster
    Enregistré
  • Posts: 55
  • Thanks: 12

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

3 weeks 15 hours ago
#4794
Try contacting Orico to see if you can get them firmware from them,I now at one time they were pretty good about supplying firmware.

Please Connexion or Create an account to join the conversation.

  • Shonk
  • Shonk's Avatar
  • Offline
  • Big Poster
  • Big Poster
    Enregistré
  • Posts: 89
  • Thanks: 35

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

3 weeks 15 hours ago
#4795
I picked up a BENFEI RTL9210B with super capacitor yesterday

here's the config for it just incase anyone ever needs it

[img

[img


Code:
************************************************************** Device : [Port18] : Realtek RTL9210 NVME #0 ************************************************************** U2PHY : n/a U3PHY : n/a VID : 0x0bda PID : 0x9210 MANUFACTURE : "Realtek" PRODUCT : "RTL9210" SERIAL : "012345678914" SCSI_PRODUCT : "RTL9210 NVME    " SCSI_VENDOR : "Realtek " USB_SELF_PWR : n/a DISK_HOTPLUG : n/a LED : 0x02 PINMUX1 : n/a PINMUX2 : n/a U2_MAXPWR : 0xfa U3_MAXPWR : 0x70 ASPMDIS : 0x00 PCIE_REFCLK : n/a DISK_IPS_THRES : 0x01 SWR_1_2V : n/a EN_UPS : n/a PD : n/a CUSTOMIZED_LED : 07 02 00 00 00 00 00 00 00 00 00 00 00 00 00 SUSPEND_LED_OFF : 0x01 FORCE_USB_SPEED : n/a FORCE_PCIE_SPEED : n/a EN_U1U2 : n/a FORCE_USB_QUIRK : n/a FORCE_PCIE_QUIRK : n/a FAN : n/a DIS_SHOW_EMPTY_DISK : 0x01 FORCE_SATA_NORMAL_DMA : n/a UART_DBG_PIN : 0x05 FINGER_PRINT_EN : n/a RM_INTERNAL_RD : n/a HS_AUTO_SWITCH : n/a UART_BAUD_RATE : n/a CUSTOMIZED_DISK_IDENTIFY : n/a HW_LED_CFG : n/a CDROM_CFG : n/a SUPPORT_HID : n/a LATE_INIT_DISK : n/a SCSI_WP_PIN : n/a SD_MMC_TYPE : n/a FORCE_PORT_TYPE : n/a BCDDEVICE : n/a SUSPEND_DISK_OFF : 0x01 SCSI_WB_PIN : n/a CUSTOMIZED_FEATURE : 0x0000000000010000 PERIPH_API : n/a RAID_CFG : n/a Boot Mode : Flash FW Ver : 1.33.81 FW Build Date : 2024.06.17 IC Pkg Type : PCIE UUID : n/a Disconn_ForceUSB2 : false
The following user(s) said Thank You: Stasiz

Please Connexion or Create an account to join the conversation.

  • rococoricoco
  • rococoricoco's Avatar
  • Offline
  • Poster 2
  • Poster 2
    Enregistré
  • Posts: 5
  • Thanks: 0

Re: NVME USB drives Realtek RTL9210/RTL9220 Firmware Version 1.xx

3 days 15 hours ago - 2 days 9 hours ago
#4897
Hello all, i have problem with my ssd enclosure (Fanxiang MD86),  i accidentally setup the config that makes the S.M.A.R.T display not working. I have my dump backed up, can someone translate my dump into .cfg files?

**************************************************************
Device : [Port7] : Fanxiang MD86 #0
**************************************************************
U2PHY : n/a
U3PHY : n/a
VID : 0x0bda
PID : 0x9210
MANUFACTURE : "Fanxiang"
PRODUCT : "RB"
SERIAL : "13381244110099"
SCSI_PRODUCT : "MD86            "
SCSI_VENDOR : "Fanxiang"
USB_SELF_PWR : n/a
DISK_HOTPLUG : n/a
LED : 0x01
PINMUX1 : n/a
PINMUX2 : n/a
U2_MAXPWR : n/a
U3_MAXPWR : n/a
ASPMDIS : n/a
PCIE_REFCLK : n/a
DISK_IPS_THRES : n/a
SWR_1_2V : n/a
EN_UPS : n/a
PD : n/a
CUSTOMIZED_LED : 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SUSPEND_LED_OFF : 0x00
FORCE_USB_SPEED : n/a
FORCE_PCIE_SPEED : n/a
EN_U1U2 : n/a
FORCE_USB_QUIRK : n/a
FORCE_PCIE_QUIRK : 0x00040000
FAN : n/a
DIS_SHOW_EMPTY_DISK : n/a
FORCE_SATA_NORMAL_DMA : n/a
UART_DBG_PIN : 0x05
FINGER_PRINT_EN : n/a
RM_INTERNAL_RD : n/a
HS_AUTO_SWITCH : n/a
UART_BAUD_RATE : 0x0000e100
CUSTOMIZED_DISK_IDENTIFY : n/a
HW_LED_CFG : n/a
CDROM_CFG : n/a
SUPPORT_HID : n/a
LATE_INIT_DISK : n/a
SCSI_WP_PIN : 0x0c
SD_MMC_TYPE : n/a
FORCE_PORT_TYPE : n/a
BCDDEVICE : n/a
SUSPEND_DISK_OFF : n/a
SCSI_WB_PIN : n/a
CUSTOMIZED_FEATURE : 0x0000000000010000
PERIPH_API : 0x01
RAID_CFG : n/a

Boot Mode : Flash
FW Ver : 1.33.98
FW Build Date : 2024.09.03
IC Pkg Type : PCIE/SATA
UUID : n/a

Disconn_ForceUSB2 : false


Any Help will be appreciated. Thanks before. Hope someone can help.
