ssd Realtek RTL9201R Firmware 1.32.7

More
8 months 4 days ago #4557 by Stasiz
Replied by Stasiz on topic Realtek RTL9201R Firmware 1.32.7
@Shonk
For collection. SPI dump 1.33.3 from ShuoLe enclosure.




Code:
************************************************************** Device : [Port6] : ShuoLe Super SSD #0 ************************************************************** U2PHY : n/a U3PHY : n/a VID : 0x0bda PID : 0x0000 MANUFACTURE : "ShuoLe " PRODUCT : "ShuoLe  Super SSD" SERIAL : "012345678950" SCSI_PRODUCT : "Super SSD       " SCSI_VENDOR : "ShuoLe  " USB_SELF_PWR : n/a DISK_HOTPLUG : 0x03 LED : n/a PINMUX1 : n/a PINMUX2 : n/a U2_MAXPWR : n/a U3_MAXPWR : n/a ASPMDIS : n/a PCIE_REFCLK : n/a DISK_IPS_THRES : n/a SWR_1_2V : n/a EN_UPS : n/a PD : n/a CUSTOMIZED_LED : 01 00 00 00 00 00 00 00 00 00 00 00 00 00 00  SUSPEND_LED_OFF : n/a FORCE_USB_SPEED : n/a FORCE_PCIE_SPEED : n/a EN_U1U2 : n/a FORCE_USB_QUIRK : n/a FORCE_PCIE_QUIRK : n/a FAN : n/a DIS_SHOW_EMPTY_DISK : n/a FORCE_SATA_NORMAL_DMA : n/a UART_DBG_PIN : 0x64 FINGER_PRINT_EN : n/a RM_INTERNAL_RD : n/a HS_AUTO_SWITCH : n/a UART_BAUD_RATE : 0x0000e100 CUSTOMIZED_DISK_IDENTIFY : n/a HW_LED_CFG : n/a CDROM_CFG : n/a SUPPORT_HID : n/a LATE_INIT_DISK : n/a SCSI_WP_PIN : n/a SD_MMC_TYPE : n/a FORCE_PORT_TYPE : n/a BCDDEVICE : n/a SUSPEND_DISK_OFF : n/a SCSI_WB_PIN : n/a CUSTOMIZED_FEATURE : n/a PERIPH_API : 0x01 RAID_CFG : n/a Boot Mode : Flash FW Ver : 1.33.3 FW Build Date : 2023.09.27 IC Pkg Type : SATA UUID : n/a Disconn_ForceUSB2 : false
mega.nz/file/JQhRRLxA#ZE0Qzr15gpMYP8Hv6W...U134Uyr9l408NnG0n4vQ
The following user(s) said Thank You: Shonk

Please Connexion or Create an account to join the conversation.

  • Shonk
  • Shonk's Avatar Topic Author
  • Offline
  • The Best Poster
  • The Best Poster
    Enregistré
More
8 months 4 days ago #4558 by Shonk
Replied by Shonk on topic Realtek RTL9201R Firmware 1.32.7
thanks

did you remove the chip to dump it and confirm the dump was good with multiple dumps?

I found dumping in situ resulted in random corruption every dump was slightly different
so had to remove the chip

Please Connexion or Create an account to join the conversation.

More
8 months 1 day ago - 8 months 1 day ago #4565 by Stasiz
Replied by Stasiz on topic Realtek RTL9201R Firmware 1.32.7

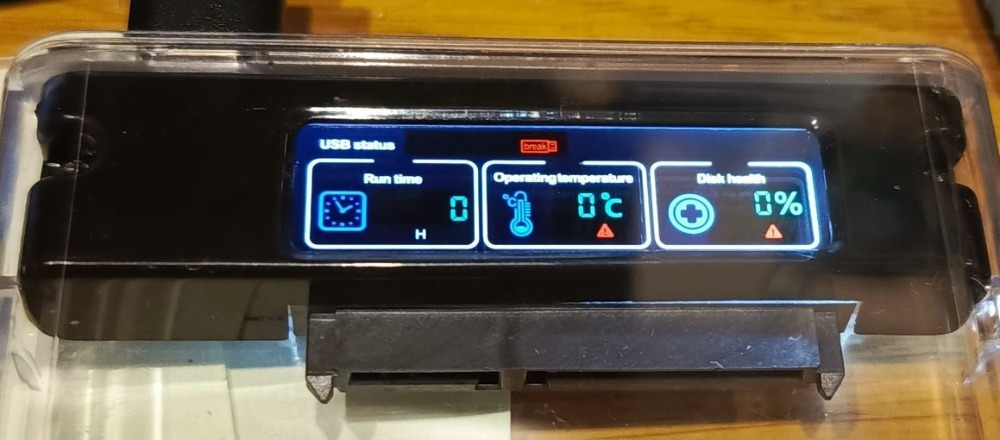

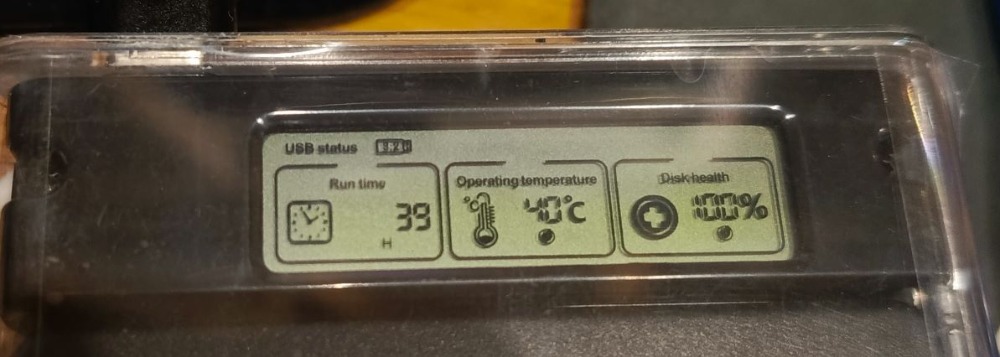

I did not unsolder the chip. First I made one dump of the box with a color screen with NeoProgrammer, the second dump I made with AsProgrammer. Both dumps were identical. With this dump I successfully flashed the box with a monochrome screen.

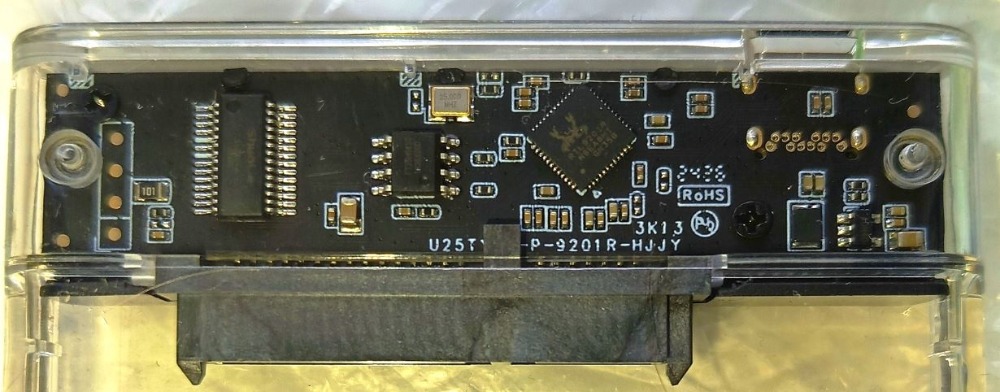

NeoProgrammer identifies memory in a case with a color screen as FT25H04, in a case with a monochrome screen as ZB25WD40.
In AsProgrammer I chose N25S40 Nantronics.

Before that I broke the smart information output on the case with a monochrome screen by flashing 1.32.7 firmware.
Apparently this firmware does not support the output of such information. Then I flashed your Cofre Disco Duro 1.33.88 SPI dump. This firmware is newer but does not have PERIPH_API = 0x01 in the configuration responsible for RTL9201R communication with an additional controller for display on the screen.

The original firmware in the case with a monochrome screen was 1.32.62
Code:
************************************************************** Device : [Port5] : Realtek RTL9201 #0 ************************************************************** U2PHY : n/a U3PHY : n/a VID : 0x0bda PID : 0x9201 MANUFACTURE : "Realtek" PRODUCT : "RTL9201" SERIAL : "012345678921" SCSI_PRODUCT : "RTL9201         " SCSI_VENDOR : "Realtek " USB_SELF_PWR : n/a DISK_HOTPLUG : 0x03 LED : n/a PINMUX1 : n/a PINMUX2 : n/a U2_MAXPWR : n/a U3_MAXPWR : n/a ASPMDIS : n/a PCIE_REFCLK : n/a DISK_IPS_THRES : n/a SWR_1_2V : n/a EN_UPS : n/a PD : n/a CUSTOMIZED_LED : 01 00 00 00 00 00 00 00 00 00 00 00 00 00 00  SUSPEND_LED_OFF : n/a FORCE_USB_SPEED : n/a FORCE_PCIE_SPEED : n/a EN_U1U2 : n/a FORCE_USB_QUIRK : n/a FORCE_PCIE_QUIRK : n/a FAN : n/a DIS_SHOW_EMPTY_DISK : n/a FORCE_SATA_NORMAL_DMA : n/a UART_DBG_PIN : 0x64 FINGER_PRINT_EN : n/a RM_INTERNAL_RD : n/a HS_AUTO_SWITCH : n/a UART_BAUD_RATE : 0x0000e100 CUSTOMIZED_DISK_IDENTIFY : n/a HW_LED_CFG : n/a CDROM_CFG : n/a SUPPORT_HID : n/a LATE_INIT_DISK : n/a SCSI_WP_PIN : n/a SD_MMC_TYPE : n/a FORCE_PORT_TYPE : n/a BCDDEVICE : n/a SUSPEND_DISK_OFF : n/a SCSI_WB_PIN : n/a CUSTOMIZED_FEATURE : n/a PERIPH_API : 0x01 RAID_CFG : n/a Boot Mode : Flash FW Ver : 1.32.62 FW Build Date : 2023.06.05 IC Pkg Type : SATA UUID : n/a Disconn_ForceUSB2 : false
Last edit: 8 months 1 day ago by Stasiz.

Please Connexion or Create an account to join the conversation.

More
8 months 1 day ago #4566 by m.fessler
Replied by m.fessler on topic Realtek RTL9201R Firmware 1.32.7
Hello,

I have an Orico 25PW1-C3 that apparently (also) ships with the RTL9201R.
I'm a complete newbie and don't have a programmer.
Is the bridge chip good so far, or does it have serious weaknesses?
UsbTreeView even says it's a 3.2 Gen 2 device (10 Gbps) – is that true, or is this a display error?

I would like to remove the sleep timer and rename "the case".
Is this possible with MPtool_Lite?
Would someone please be so kind as to briefly describe how?

Thank you in advance for any help!
Regards, Martin

Please Connexion or Create an account to join the conversation.

More
7 months 1 day ago - 7 months 1 day ago #4728 by hiagoloy
Replied by hiagoloy on topic Realtek RTL9201R Firmware 1.32.7
Recently, I bought an USB-C Enclosure from AliExpress. Brand is Eaget. The issue is that I've noticed that, after a while, maybe a minute or 2, the HDD would kinda 'sleep'. I noticed that on windows, it won't disconnect. But after this time passes, it takes a while to create a new folder or access any file on the HDD. This has been a problem 'cause I'm trying to use the drive and it's really annoying me haha. the chip seems to be RTL9201R. Can you guys help me? I'm a newbie. I've downloaded MPtool_lite and got to this DUMP section which showed me this:

U2PHY : n/a
U3PHY : n/a
VID : 0x0bda
PID : 0x9201
MANUFACTURE : "Realtek"
PRODUCT : "RTL9201"
SERIAL : "012345678999"
SCSI_PRODUCT : "n/a"
SCSI_VENDOR : "n/a"
USB_SELF_PWR : n/a
DISK_HOTPLUG : 0x03
LED : 0x03
PINMUX1 : n/a
PINMUX2 : n/a
U2_MAXPWR : n/a
U3_MAXPWR : n/a
ASPMDIS : n/a
PCIE_REFCLK : n/a
DISK_IPS_THRES : 0x03
SWR_1_2V : n/a
EN_UPS : n/a
PD : n/a
CUSTOMIZED_LED : 08 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SUSPEND_LED_OFF : n/a
FORCE_USB_SPEED : n/a
FORCE_PCIE_SPEED : n/a
EN_U1U2 : n/a
FORCE_USB_QUIRK : n/a
FORCE_PCIE_QUIRK : n/a
FAN : n/a
DIS_SHOW_EMPTY_DISK : 0x01
FORCE_SATA_NORMAL_DMA : n/a
UART_DBG_PIN : 0x64
FINGER_PRINT_EN : n/a
RM_INTERNAL_RD : n/a
HS_AUTO_SWITCH : n/a
UART_BAUD_RATE : n/a
CUSTOMIZED_DISK_IDENTIFY : n/a
HW_LED_CFG : n/a
CDROM_CFG : n/a
SUPPORT_HID : n/a
LATE_INIT_DISK : n/a
SCSI_WP_PIN : n/a
SD_MMC_TYPE : n/a
FORCE_PORT_TYPE : n/a
BCDDEVICE : n/a
SUSPEND_DISK_OFF : n/a
SCSI_WB_PIN : n/a
CUSTOMIZED_FEATURE : n/a
PERIPH_API : n/a
RAID_CFG : n/aBoot Mode : Flash
FW Ver : 1.32.7
FW Build Date : 2022.11.25
IC Pkg Type : SATA
UUID : n/aDisconn_ForceUSB2 : false




Can I disable this timer the Case seems to have?
Last edit: 7 months 1 day ago by hiagoloy. Reason: Better format of the text
